Flange in Leghe di Nichel e Acciai Inossidabili Duplex/Superduplex
Global Alloys è un fornitore specializzato nella fornitura di flange in acciai inossidabili/Duplex e leghe di Nichel.
Possiamo fornire flange da un vasto stock o produrre le flange su richiesta anche in piccole serie in leghe di Nichel e acciaio Duplex, Super Duplex o Super Austenitico.
FLANGE IN LEGHE DI NICKEL DA PRODUZIONE
Misure secondo DIN – EN1092-1 – EN1759-1 – NFE – BS10/BS4504 – ISO7005-1
– PN2.5/PN06/PN10 up to DN800
– PN16/PN25/PN40 up to DN600
– PN63/PN100 up to DN500
– PN160/PN250 up to DN300
– PN320/PN400 up to DN200
Classe 150(lb) fino a 24″ secondo la ASME/ASTM B16.5 – B16.36 – B16.48
– Class 300(lb) up to 20″
– Class 600(lb) up to 20″
– Class 900(lb) up to 16″
– Class 1500(lb) up to 10″
– Class 2500(lb) up to 8″
– WN – Welding Neck: EN-TYPE 11
– BL – Blind: EN-TYPE 05
– SO – Slip On: EN-TYPE 01/12
– LJ – Lap Joint: EN-TYPE 02/04
– SW – Socket Weld: EN-TYPE 14
– THR – Threaded: EN-TYPE 13

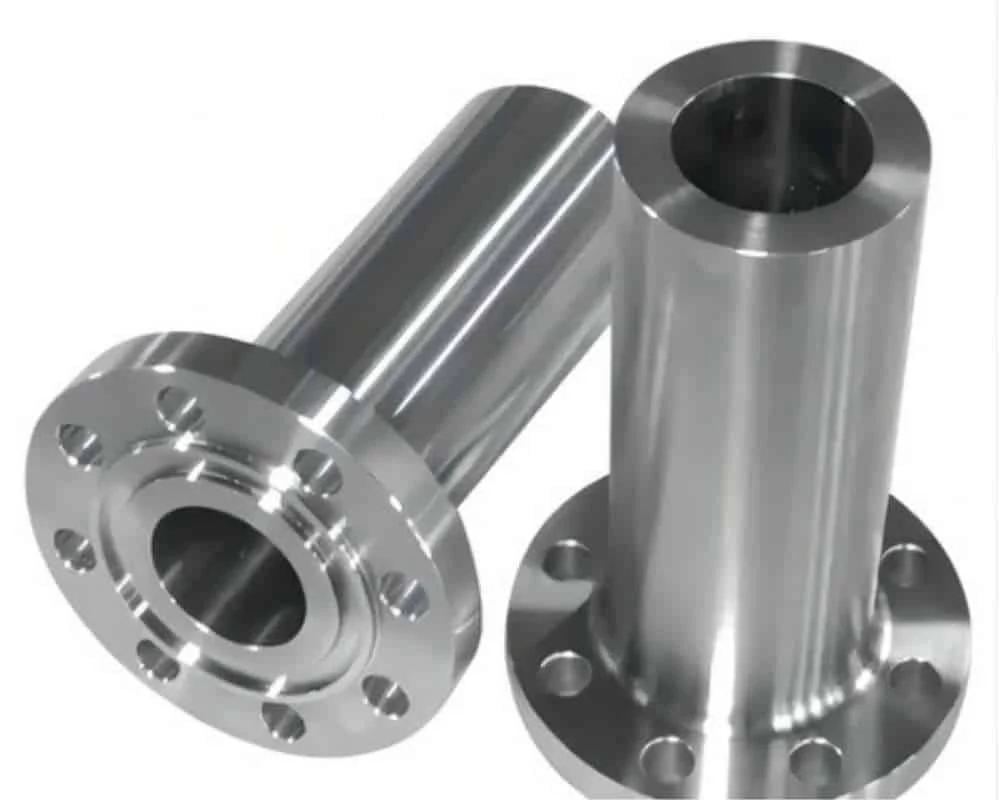

– LWN – Long Welding Neck / Integral: EN-TYPE 21
– Welding Collars: EN-TYPE 32/34
– ORIFICE Flanges, Swivel Flanges, Spades, Spacer Rings
– Spectable Blinds, API 6A, JIS B2220, VSM, NFE, BS10/BS4504, GOST
– API 6A Flanges
LEGHE DI NICKEL
Nickel Alloys:
Nickel Alloys:
– Alloy 800/800H: 1.4876 – UNS N08800/N08810
– Monel 400: 2.4360 – UNS N04400
– Alloy 600: 2.4816 – UNS N06600
– Alloy 625: 2.4856 – UNS N06625
– Alloy 825: 2.4858 – UNS N08825
– Alloy C276: 2.4819 – UNS N10276
– Alloy 59: 2.4605 – UNS N06059
– Alloy C4: 2.4610 – UNS N06455
– Alloy 22: .4602 – UNS N06022
– Alloy 20: 2.4660 – UNS N08020

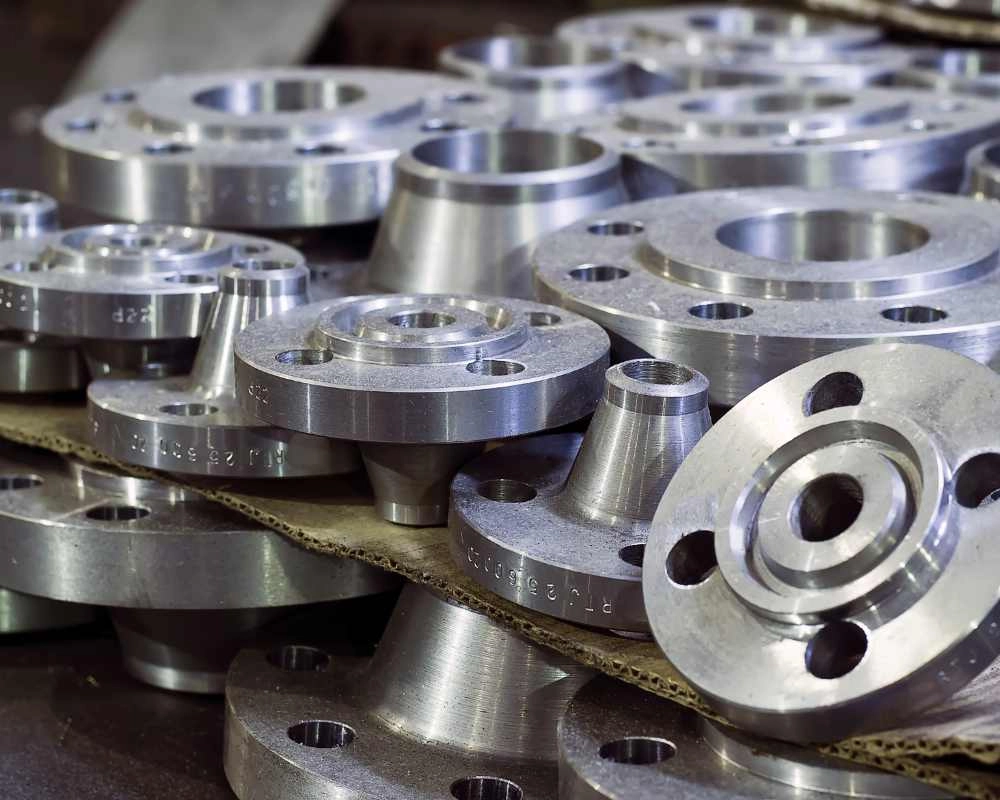

FLANGE DISPONIBILI DA STOCK
| GRADE | 1.4301/1.4307 | 1.4401/1.4404 | ||
|---|---|---|---|---|
| AISI/UNS | 304/304 L | 316/316 L | ||
| Welding neck flanges according to EN | PN 06: PN 10: PN 16: PN 25: PN 40: | DN 15/21.3 - DN 600/609.6 DN 200/204 - DN 800/812.8 DN 50/54 - DN 600/609.6 DN 200/219.1 - DN 600/609.9 DN 10/17.2 - DN 300/323.9 | PN 06: PN 10: PN 16: PN 25: PN 40: | DN 15/21.3 - DN 600/609.6 DN 200/204 - DN 800/812.8 DN 50/54 - DN 600/609.6 DN 200/219.1 - DN 600/609.9 DN 10/17.2 - DN 300/323.9 |
| Welding neck flanges according to EN with reduced S-size | - | - | ||
| Welding neck flanges according to DIN | PN16: | DN 15/21.3 - DN 32/42.4 | - | |
| Welding neck flanges according to ASTM | 150#: 300#: 600#: | 1/2“ SCH10S - 24“ SCH40S 1/2“ SCH40S - 16“ SCH80S 1/2“ SCH80S - 10“ SCH80S | 150#: 300#: 600#: | 1/2“ SCH10S - 24“ SCH40S 1/2“ SCH40S - 16“ SCH80S 1/2“ SCH80S - 10“ SCH80S |
| Flanges for automatic welding according to EN | - | - | ||
| Flanges for automatic welding according to DIN | - | - | ||
| BSP threaded flanges according to EN | PN16: PN40: | DN 50/60.3 - DN 100/114.3 DN 10/17.2 - DN 40/48.3 | PN16: PN40: | DN 50/60.3 - DN 100/114.3 DN 10/17.2 - DN 40/48.3 |
| Threaded flanges according to DIN | - | - | ||
| NPT threaded flanges according to ASTM | 150#: 300#: | 1/2“/21.3 - 2“/60.5 1/2“/21.3 - 2“/60.5 | 150#: 300#: | 1/2“/21.3 - 3“/88.9 1/2“/21.3 - 2“/60.5 |
| Slip-on flanges according to EN | PN 06: PN 10: PN 16: PN 40: | DN 15/21.3 - DN 600/609.6 DN 200/204 - DN 800/812.8 DN 50/50.8 - DN 400/406.4 DN 10/17.2 - DN 40/48.3 | PN 06: PN 10: PN 16: PN 40: | DN 15/21.3 - DN 600/609.6 DN 200/204 - DN 800/812.8 DN 50/50.8 - DN 400/406.4 DN 10/17.2 - DN 40/48.3 |
| Slip-on flanges according to DIN | - | - | ||
| Slip-on flanges according to DIN with reduced thickness | PN 10: | DN 50/60.3 - DN 1000/1016 | PN 10: | DN 300/323.9 - DN 1000/1016 |
| Slip-on flanges according to EN with reduced thickness | PN 10: | DN 15/21.3 - DN 600/610 | - | |
| Slip-on flanges according to ASTM | 150#: 300#: | 1/2“/21.3 - 24“/609.6 1/2“/21.3 - 12“/323.9 | 150#: 300#: | 1/2“/21.3 - 24“/609.6 1/2“/21.3 - 12“/323.9 |
| Lap-joint flanges according to EN | PN 10: PN 16: PN 40 | DN 200/204 - DN 800/812.8 DN 50/50.8 - DN 200/219.1 DN 10/17.2 - DN 40/48.3 | PN 10: PN 16: PN 40 | DN 200/204 - DN 800/812.8 DN 50/50.8 - DN 200/219. DN 10/17.2 - DN 200/219.1 |
| Lap-joint flanges according to DIN | - | - | ||
| Lap-joint flanges according to DIN with reduced thickness | PN 10: | DN 50/60.3 - DN 600/609.6 | PN 10: | DN 300/323.9 - DN 600/609.6 |
| Lap-joint flanges according to EN with reduced thickness | PN 10: | DN 15/21.3 - DN 600/609.6 | - | |
| Lap-joint flanges according to ASTM | 150#: | 1/2“/21.3 - 24“/609.6 | 150#: | 1/2“/21.3 - 24“/609.6 |
| Blind flanges according to EN | PN 06: PN 10: PN 16: PN 40: | DN 50 - DN 600 DN 200 - DN 800 DN 50 - DN 600 DN 10 - DN 150 | PN 06: PN 10: PN 16: PN 40: | DN 50 - DN 600 DN 200 - DN 800 DN 50 - DN 600 DN 10 - DN 150 |
| Blind flanges according to DIN | - | - | ||
| Blind flanges according to DIN with reduced thickness | PN 10: PN 16: | DN 200 - DN 600 DN 100 - DN 150 | PN 10: | DN 300 - DN 600 |
| Blind flanges according to EN with reduced thickness | PN 10: | DN 15 - DN 500 | - | |
| Blind flanges according to ASTM | 150#: 300#: 600#: | 1/2“/21.3 - 24“/609.6 1/2“/21.3 - 16“/406.4 1/2“/21.3 - 8“/219.2 | 150#: 300#: 600#: | 1/2“/21.3 - 24“/609.6 1/2“/21.3 - 16“/406.4 1/2“/21.3 - 8“/219.2 |
| Socket-weld flanges according to ASTM | - | 150#: | 1/2“/21.3 - 4“/114.3 | |
| Pressed flanges | PN 10: | DN 15 - DN 300 | PN 10: | DN 15 - DN 300 |
| GRADE | 14541 | 14571 | ||
|---|---|---|---|---|
| AISI/UNS | 321 | 316 TI | ||
| Welding neck flanges according to EN | PN 10: PN 16: PN 40: | DN 200/219.1 - DN 400/406.4 DN 50/60.3 - DN 400/406.4 DN 15/21.3 - DN 80/88.9 | PN 10: PN 16: PN 40 | DN 200/204 - DN 600/609.6 DN 50/54 - DN 500/508.0 DN 10/17.2 - DN 200/219.1 |
| Welding neck flanges according to EN with reduced S-size | - | PN10: | DN 200/219.1 - DN 250/273.0 | |
| Welding neck flanges according to DIN | PN16: | DN 10/17.2 - DN 40/48.3 | PN16: | DN 10/17.2 - DN 150/159.0 |
| Welding neck flanges according to ASTM | - | - | ||
| Flanges for automatic welding according to EN | - | PN16: PN40: | DN 15/21.3 - DN 200/219.1 DN 15/21.3 - DN 150/168.3 | |
| Flanges for automatic welding according to DIN | - | PN16: | DN 15/21.3 - DN 50/60.3 | |
| BSP threaded flanges according to EN | - | PN16: PN40: | DN 50/60.3 - DN 80/88.9 DN 10/17.2 - DN 40/48.3 | |
| Threaded flanges according to DIN | - | PN10: PN16: | DN 15/21.3 - DN 100/114.3 DN 15/21.3 - DN 100/114.3 | |
| NPT threaded flanges according to ASTM | - | - | ||
| Slip-on flanges according to EN | PN 10: PN 16: | DN 250/273 - DN 500/508 DN 80/88.9 - DN 125/139.7 | PN 10: PN 16: PN 40: | DN 200/206 - DN 500/508 DN 50/54 - DN 300/323.9 DN 15/21.3 - DN 40/48.3 |
| Slip-on flanges according to DIN | PN 10: | DN 15/21.3 - DN 200/219.1 | PN 10: | DN 15/21.3- - DN 200/219.1 |
| Slip-on flanges according to DIN with reduced thickness | - | PN 10: PN 16: | DN 50/60.3 - DN 500/508 DN 65/76.1 - DN 600/609.6 | |
| Slip-on flanges according to EN with reduced thickness | PN 10: | DN 15/21.3 - DN 300/323.9 | PN 10: | DN 15/21.3 - DN 600/608 |
| Slip-on flanges according to ASTM | - | - | ||
| Lap-joint flanges according to EN | PN 10: PN 16: PN 40 | DN 200/219.1 - DN 500/508 DN 50/60.3 - DN 150/168.3 DN 15/21.3 - DN 40/48.3 | PN 10: PN 16: PN 40 | DN 200/219.1 - DN 600/609.6 DN 50/60.3 - DN 250/273 DN 15/21.3 - DN 40/48.3 |
| Lap-joint flanges according to DIN | PN 10: | DN 10/17.2 - DN 250/273 | PN 10: | DN 10/17.2 - DN 250/273 |
| Lap-joint flanges according to DIN with reduced thickness | - | PN 10: | DN 50/60.3 - DN 600/609.6 | |
| Lap-joint flanges according to EN with reduced thickness | PN 10: | DN 15/21.3 - DN 300/323.9 | PN 10: | DN 15/21.3- - DN 300/323.9 |
| Lap-joint flanges according to ASTM | - | - | ||
| Blind flanges according to EN | PN 10: PN 16: PN 40: | DN 200 - DN 300 DN 50 - DN 400 DN 15 - DN 50 | PN 10: PN 16: PN 40: | DN 200 - DN 500 DN 50 - DN 300 DN 10 - DN 200 |
| Blind flanges according to DIN | PN 16: | DN 15 - DN 40 | PN 16: | DN 10 - DN 40 |
| Blind flanges according to DIN with reduced thickness | PN 10: PN 16: | DN 200 - DN 600 DN 100 - DN 150 |
||
| Blind flanges according to EN with reduced thickness | PN 10: | DN 25 - DN 300 | PN 10: | DN 20 - DN- 300 |
| Blind flanges according to ASTM | - | - | ||
| Socket-weld flanges according to ASTM | - | - | ||
| Pressed flanges | - | - |
Denominazione
Forma
Nomenclatura
WR
UNS
Specifica
AISI 800
1.4876
N08800
ASTM B409, ASTM B408
Hastelloy C-4
2.4610
N06455
ASTM B574, ASTM B619
Incoloy 825
2.4858
N08825
ASTM B424, ASTM B564
Duplex F51
1.4462
S31803/S32205
ASTM A182, ASTM A240, ASTM A789
Super Duplex F53
1.4418
S32750
ASTM A182, ASTM A240, ASTM A790
Super Duplex F55
1.4501
S32760
ASTM A182, ASTM A240, ASTM A790
Inconel 718
2.4668
N07718
ASTM B637, ASTM B670, AMS 5662, AMS 5663
Inconel 625
2.4856
N06625
ASTM B443, ASTM B446, AMS 5599, AMS 5666
Alloy 20
2.4660
N08020
ASTM B463, ASTM B729, AMS 5543
Monel 400
2.4360
N04400
ASTM B127, ASTM B165, AMS 4675
Nimonic 80A
2.4952
N07080
ASTM B637, AMS 5829
Inconel 600
2.4816
N06600
ASTM B168, ASTM B163, AMS 5540
Inconel 617
2.4663
N06617
ASTM B167, ASTM B168, AMS 5887
Inconel 725
2.4667
N07725
ASTM B805, ASTM B637, AMS 5666
Incoloy 800H/HT
1.4958/1.4876
N08810/N08811
ASTM B409, ASTM B163, AMS 5540
Incoloy 925
2.4858
N09925
ASTM B805, ASTM B637, AMS 5667
Hastelloy C276
2.4819
N10276
ASTM B575, ASTM B622, AMS 5596
Monel K500
2.4375
N05500
ASTM B865, AMS 4676
Haynes 25
2.4964
R30605
ASTM F90, AMS 5796
Inconel X-750
2.4669
N07750
ASTM B637, AMS 5667, AMS 5698
A-286
1.4980
S66286
ASTM A453, AMS 5525
Hastelloy X
2.4665
N06002
ASTM B435, AMS 5536
Hastelloy C22
2.4602
N06022
ASTM B575, ASTM B622, AMS 5596
Nickel 200/201
2.4060/2.4066
N02200/N02201
ASTM B162, AMS 5553
